BUILD-UP IN BATHROOMS
MOUNTING TABS & ELECTRICAL
KNOCKOUTS FOR EASY INSTALL
22 GA. STEEL HOUSING WITH
Designed for ventilating bathrooms from 65 sq. ft. and other rooms up to 85 sq. ft.
Heavy gauge mounting tabs with 4 in. round duct collar and knockouts on side and top of housing for quicker installation
Built-in incandescent light
Gracefully curved grille for efficient airflow
Sturdy 22-gauge steel housing with 4 in. round duct collar
UL Listed and approved for use over tub/shower enclosures when installed in a GFCI protected branch circuit
22 ga. Steel Housing, Plastic Discharge Collar and Grille
L Models: 100W Incandescent Bulb (A-19)
Permanently Lubricated, Ball-Bearing, Plug-In
120 V / 60 Hz
5.62 in. H x 12 in. W x 12 in. D (Grille Size and Housing Depth)
13 in. x 13 in. x 9 in.
NXMS70L: 70 CFM, Incandescent
|Single Product UPC|
|Country of Origin - Assembly|
US from Domestic and Imported Components
Maxx Air, NuVent

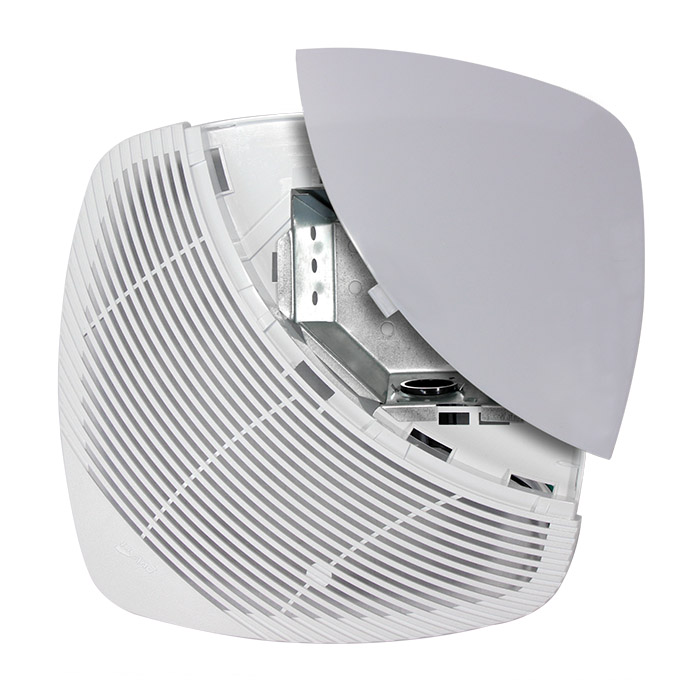

Our attractive grille fits neatly into place and compliments any design style no matter your space. When your bulb requires replacement, simply push the center tab to remove the lens for access to the lamp holder. It's that easy!

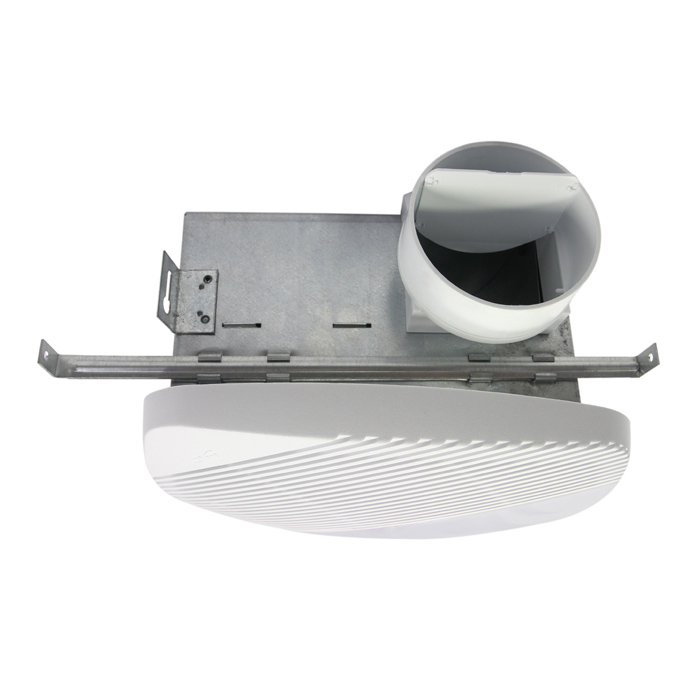

MS Series units provide keyhole mounting tabs and L brackets for customized, secure installations, as well as knockouts on the side of the housing for quick wiring setup.
A warm shower is great, but all that unventilated steam and moisture can set up your bathroom for mold and mildew (and the damaging after-effects of removing it). Installing this MS series bath fan aids in removing this moisture in bathrooms up to 65 sq. ft.
