BUILD-UP IN BATHROOMS
MOTION AND HUMIDITY SENSOR

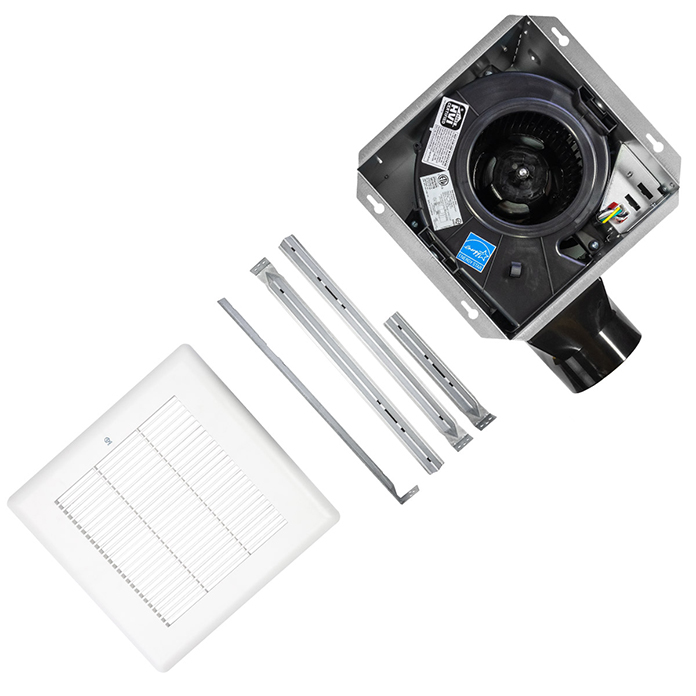

KITS FOR EASY UPGRADES
MOUNTING TABS & WIRING
KNOCKOUTS FOR EASY INSTALL
QuFresh BC Series Bath Fans are a cost-effective, yet modern solution for home or commercial use with fans with a 100 CFM operation for continuous odor ventilation, mildew prevention, and moisture reduction in a bathroom or other room needing a ventilation fan system. Constructed using a galvanized steel housing and 4 in. polymeric duct connector with a spring-installled polymeric grille cover. This exhaust fan includes hanger bars and mounting tabs for installation anywhere between 16 in. to 24 in. on-center joists and a plug-in motor with wiring knockouts on the housing. The PSC motor requires little maintenance and has an unrivaled quiet, low sone operation in this series at just 0.8 sones. Order with a humidity sensor (BCHUMSR) or motion sensor (BCMOTSR) to customize your vent fan, and a radiation damper (BGCRD) to meet local code requirements.

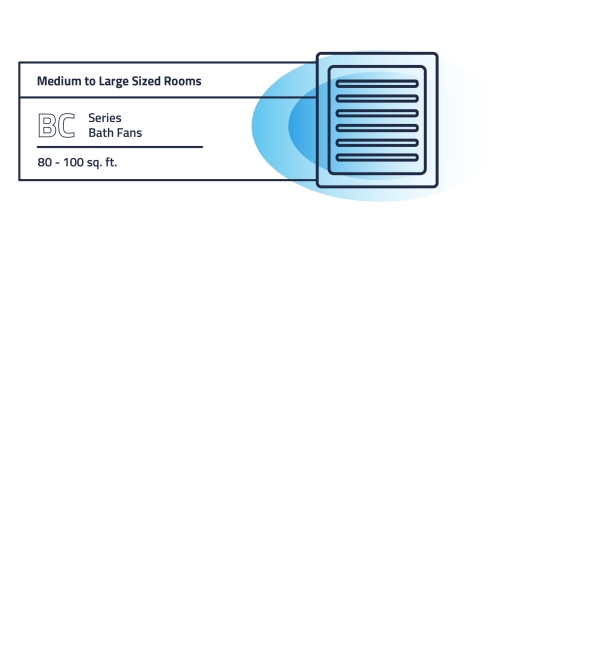

Designed for ventilating bathrooms and other rooms up to 100 sq. ft.

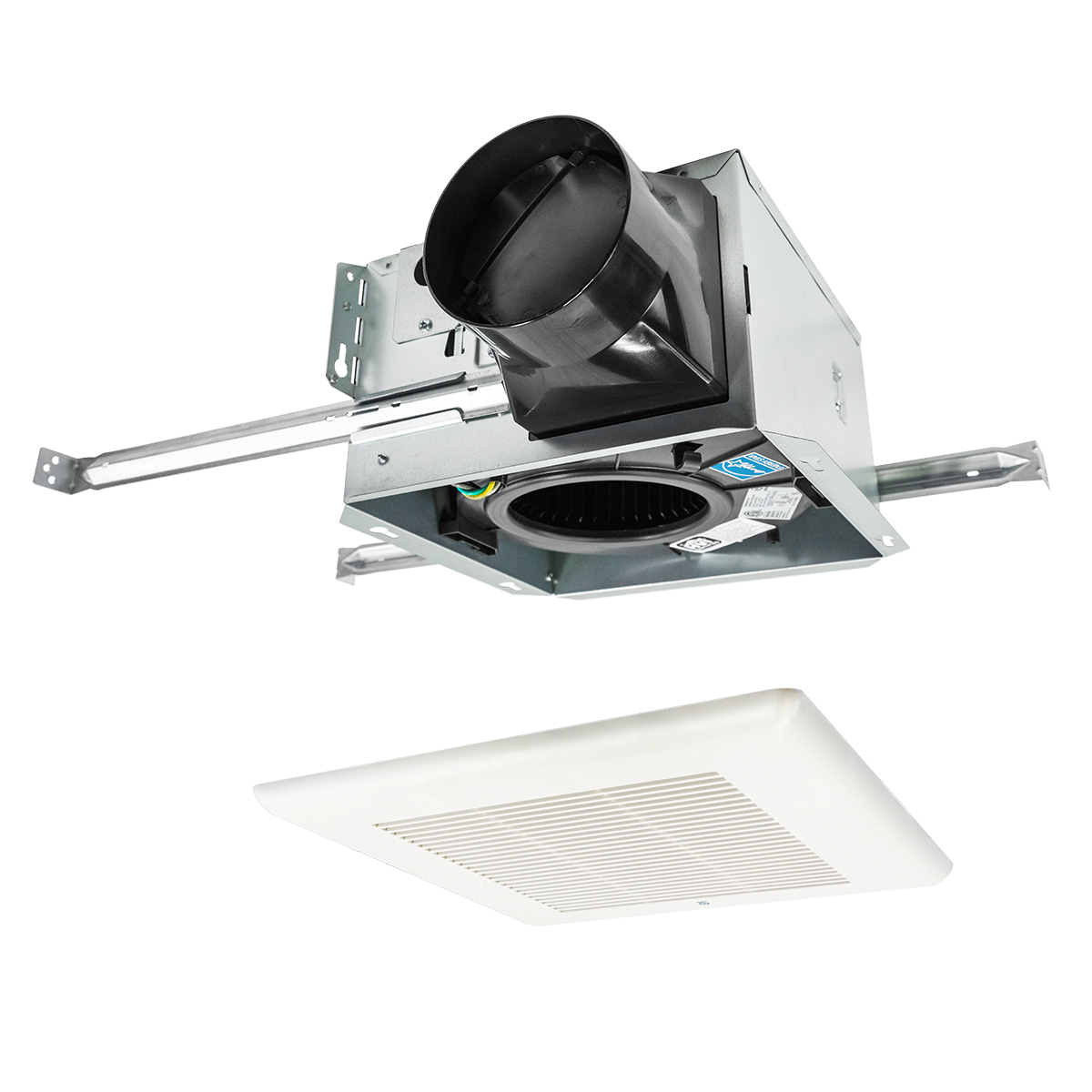

Mounts using mounting tabs or included hanger bars to position anywhere between 16 in. to 24 in. on-center joists

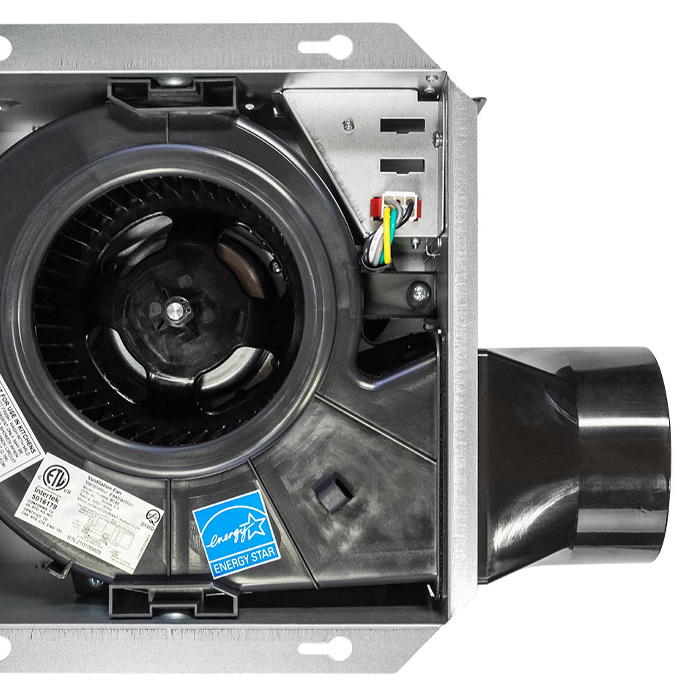

Permanently lubricated PSC motor designed for continuous operation with balanced centrifugal blower wheel for quiet, efficient performance
Heavy gauge steel housing with 4 in. round extended duct collar
Add humidity and motion sensor kits to your fan for more controlled operation
ETL Listed for use over a bathtub or shower when connected to a GFCI protected branch circuit (ceiling mount only)
Steel Housing, Textured Polymeric Grille
Permanently Lubricated PSC, Plug-In
120 V / 60 Hz
5.75 in. H x 11.44 in. W x 11.81 in. D (Grille Size and Housing Depth)
7.25 in. H x 14.5 in. W x 12 in. D
BC100: 100 CFM, 4 in. Duct
|Single Product UPC|
|Country of Origin - Assembly|
BC series units can be installed in a 2-phase system—the housing can be mounted with wiring and duct in one phase, and the blower and grille installed in a later second phase once the ceiling is complete. This ventilation fan series has a 5.75 in. housing height which allows for 2 in. x 8 in. joist installations and hanger bars and mounting tabs to position between 16 in. to 24 in. on-center joists.
Don't put up with the excess noise generated from old, clunky fans. With units operating from less than 0.3 - 0.8 sones, the BC series bath fans are so quiet you might not even know it's on.
A warm shower is great, but all that unventilated steam and moisture can set up your bathroom for mold and mildew (and the damaging after-effects of removing it). Installing this BC Series bath fan aids in removing this moisture in bathrooms up to 100 sq. ft.
