Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM
Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM
Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM
Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM
Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM
Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM
Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM

Cool attic 24 In. 2-Speed Belt Drive Whole House Fan with Shutter, 3,092 CFM

Regular price$399.99
/
Shipping calculated at checkout.

  • Free shipping within the contiguous United States
  • In stock, ready to ship
  • Inventory on the way
Perfect for:
  • Home

FOR ATTICS
1,200 - 1,800
SQ. FT.

2-SPEED & ON/OFF
WALL SWITCH

REDUCES
COOLING COSTS

JOIST-IN & JOIST-OUT
COMPATIBLE

Whole House Fans are ideal for residential use in mild to moderate climates as a supplement to air conditioning. Our belt drive units have been engineered to offer a superior performance with a more stable motor mount that is stronger than typical tube-style bracing and virtually eliminates vibration alongside an automatic shutter in a powder-coated white finish to blend in seamlessly with your ceiling. Install as a joist-in or joist-out configuration. Whole House Fans offer an efficient way to reduce cooling costs by pulling fresh air in from the outside, expelling the warm air up into the attic, and pushing it out through the attic exhaust vents.

Professionally tested by a 3rd Party- 3,092 CFM

This Entire unit is UL 507 Certified



Circulation:

Designed for houses with 1,200 - 1,800 sq. ft. attics

Installation:

Joist-in or joist-out installation. For ceiling install only - not for wall exhaust use.

Controls:

2-speed operation with included dual high/low and on/off wall switch

Material:

Steel construction and dual ball bearing technology with automatic shutter

Safety:

Requires 8 - 10 sq. ft. (1,152 - 1,440 sq. in.) of NFA

Primary Color

White

Secondary Color

Mill

CFM

Up to 3,092

Material Details

Steel Venturi, Galvanized Steel Fan Blades

Motor Details

2-Speed Thermally Protected PSC Motor

Motor Specs

4.3 Amps

120 Volts, 60 Hz

370 Watts

Dimensions

14 in. H x 28.5 in. L x 28.5 in. W

Rough Opening: 26 in. W x 28 in. L

Outside Shutter Dimensions: 27.75 in. x 29.75 in

Box Dimensions

32 in. H x 38 in. W x 20 in. D

Ship Weight

56 lbs.

Alias SKU(s)

CX24BDM-2SPD

Multi UPC Info

CX24BDM-2SPD: 047242542226 ; 047242990072 (QTY 6)

Country of Origin - Assembly

US from Domestic and Imported Components

Other Details

dBA: 59 dBA (High), 56 dBA (Low)

Sold Under

Maxx Air, Cool Attic

Our products are shipped via Fedex Ground or LTL Carrier depending on the size and weight of the product. Should you have a special requirement for shipping please contact us at customerservice@usfanco.com or call us to discuss your requirements. You can use the Freight Estimator in the Shopping Cart to determine what the freight cost will be on your item. Freight will be billed at the time of shipment. Due to the nature of the products, we cannot ship via Express or overnight service. Typically orders ship within 5 business days. Upon shipment you will be sent a notification of shipment with the Tracking Number. We reserve the right to recall a shipment for any reason.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

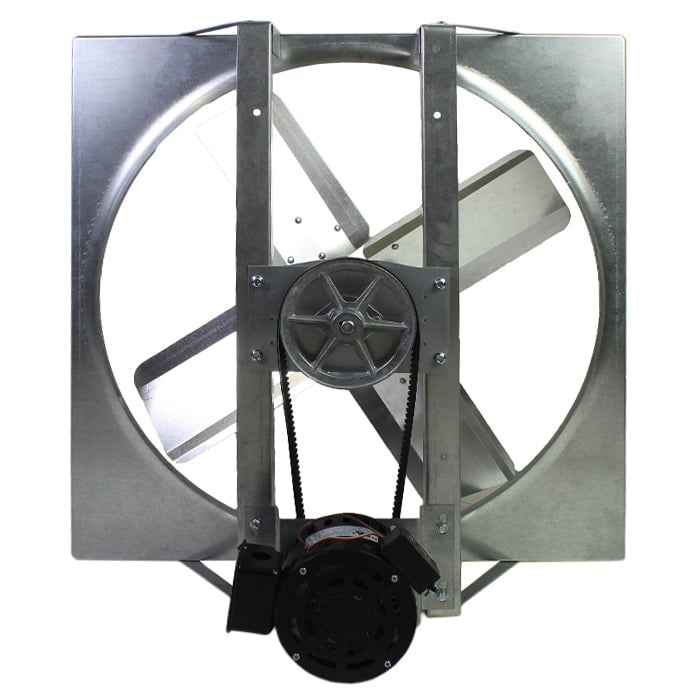

Overhead view of a belt drive whole house fan.
QUIET OPERATION

In our pursuit of constant improvement, our belt-driven whole house fans are constructed using a re-engineered bracing system to eliminate excess vibration that not only offers a quieter operation in your home, but is stronger than traditional tube-style bracing.

AUTOMATIC SHUTTER

Our whole house fan line features a shutter that opens and closes automatically with the fan's operation, making startup a breeze. In winter when the fan is not in use, the shutter maintains a 95%+ air closure to keep heated air in your living areas and out of your attic space.

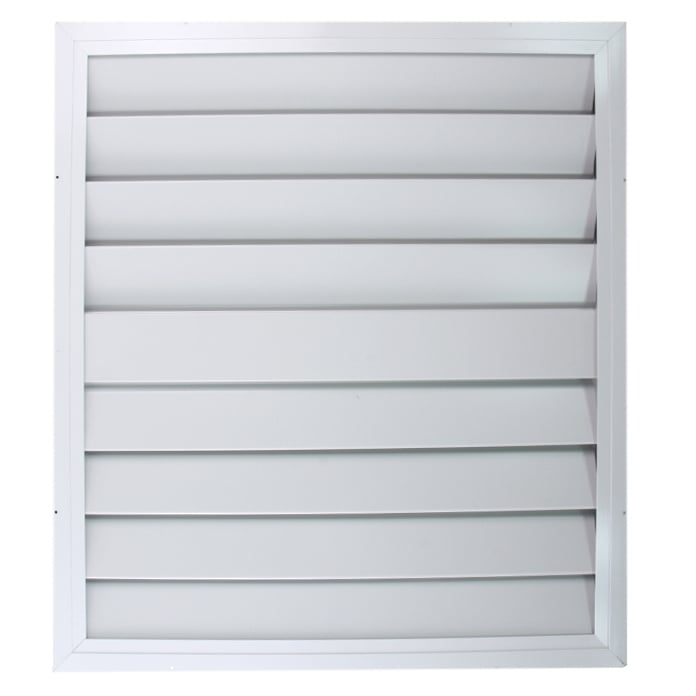

Front view of the automatic whole house fan shutter with white finish.
Whole house fans use open windows and doors to cool your home.
FRESH AIR IN YOUR HOME

Whole house fans pull cool air from open windows and doors throughout the house and push stale, warm air upwards to escape through your attic, making them a perfect alternative to an air conditioner in moderate climates. Feel instantly refreshed with this energy-saving cooling measure!

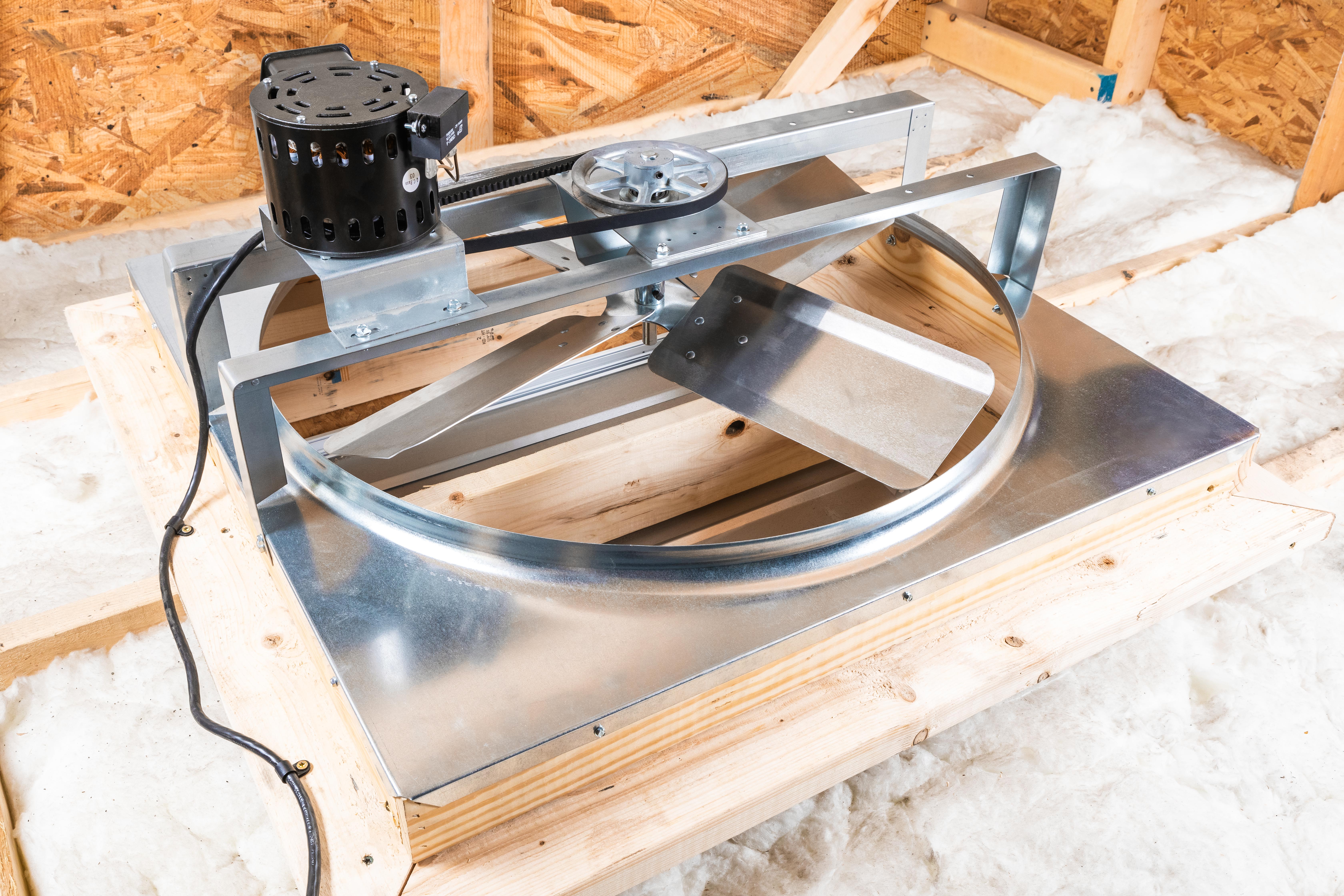

Our whole house fan line is designed to work with joist-in or joist-out install methods. Your fan arrives with an easy-to-follow instruction manual and quick start guide to make the installation process simple. This fan is 14 inches high.
