FOR ATTICS
OVER 3,000
SQ. FT.
2-SPEED & ON/OFF
WALL SWITCH
REDUCES
COOLING COSTS
JOIST-IN & JOIST-OUT
COMPATIBLE
Circulation: | Designed for houses with attics over 3,000 sq. ft. |
Installation: | Joist-in or joist-out installation. For ceiling install only - not for wall exhaust use. |
Controls: | 2-speed operation with included dual high/low and on/off wall switch |
Material: | Steel construction, aluminum fan blade assembly, and dual ball bearing technology with automatic shutter |
Safety: | Requires 12 - 14 sq. ft. (1,728 - 2,016 sq. in.) of NFA |
Primary Color | White |
Secondary Color | Mill |
CFM | 6,800 Low / 9,700 High |
Material Details | Steel Venturi, Aluminum Fan Blades |
Motor Details | 2-Speed Thermally Protected PSC Motor |
Motor Specs | 5.3 Amps 120 Volts, 60 Hz 370 Watts |
Dimensions | 14 in. H x 42.25 in. L x 42.25 in. W Rough Opening: 37.5 in. W x 34 in. L |
Unit Weight | 57 lbs. |
Alias SKU(s) | CX36BD2SPD |
Multi UPC Info | CX36BD2SPD: 047242542448 ; 047242990041 (QTY 6) |
Country of Origin - Assembly |
US from Domestic and Imported Components |
Sold Under |
Maxx Air, Cool Attic |

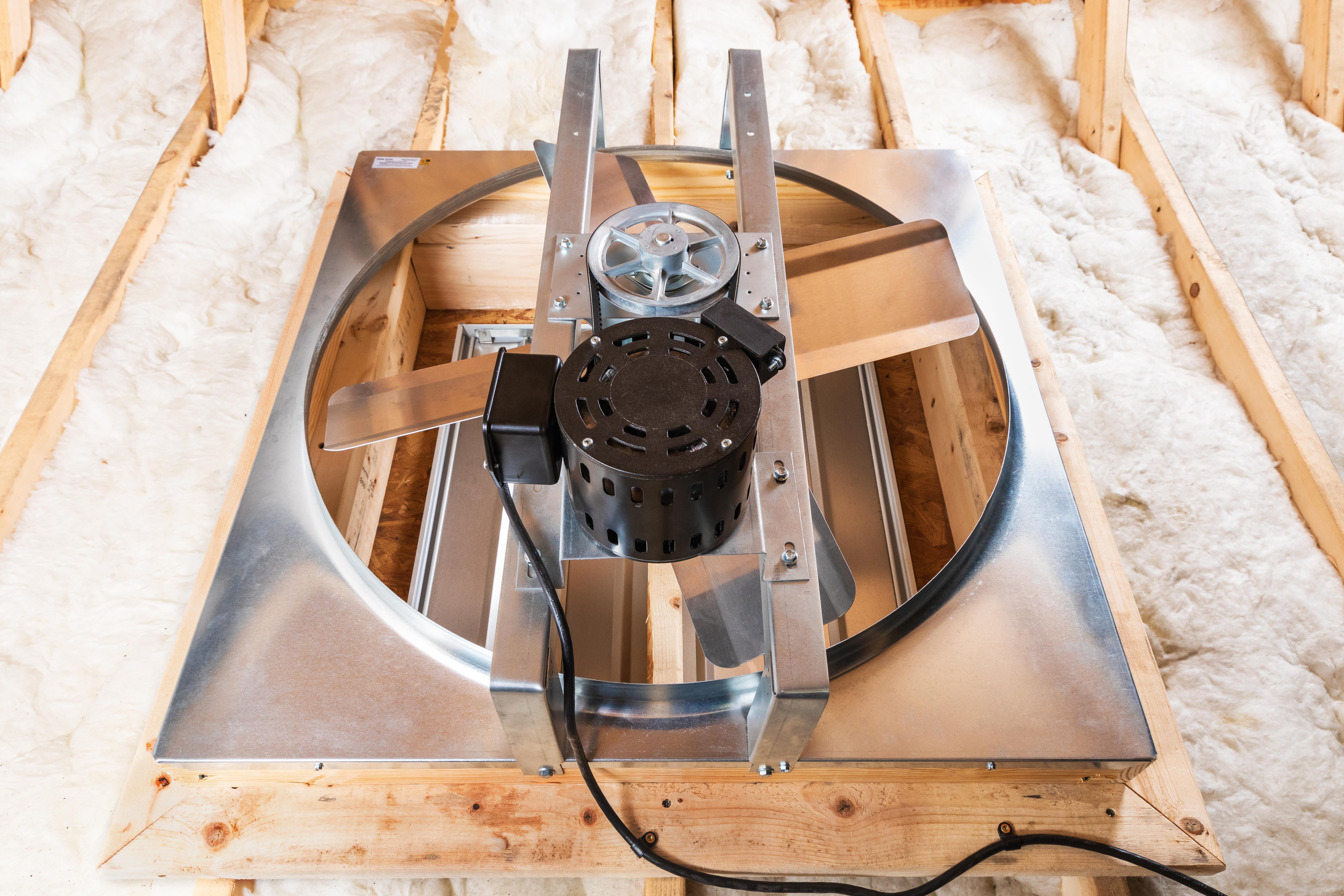

![Overhead view of a belt drive whole house fan.](https://cdn.accentuate.io/4612426498186/1659988666535/WHOLE-HOUSE-FAN-TOP.jpg?v=1659988666535)
In our pursuit of constant improvement, our belt-driven whole house fans are constructed using a re-engineered bracing system to eliminate excess vibration that not only offers a quieter operation in your home, but is stronger than traditional tube-style bracing.
Our whole house fan line features a shutter that opens and closes automatically with the fan's operation, making startup a breeze. In winter when the fan is not in use, the shutter maintains a 95%+ air closure to keep heated air in your living areas and out of your attic space.
![Front view of the automatic whole house fan shutter with white finish.](https://cdn.accentuate.io/4612426498186/1659988688782/WHOLE-HOUSE-FAN-SHUTTER.jpg?v=1659988688782)
![Whole house fans use open windows and doors to cool your home.](https://cdn.accentuate.io/4612426498186/1659988717235/WHOLE-HOUSE-FAN-WINDOW.jpg?v=1659988717235)
Whole house fans pull cool air from open windows and doors throughout the house and push stale, warm air upwards to escape through your attic, making them a perfect alternative to an air conditioner in moderate climates. Feel instantly refreshed with this energy-saving cooling measure!
![Our whole house fan line is designed to work with joist-in or joist-out install methods. Your fan arrives with an easy-to-follow instruction manual and quick start guide to make the installation process simple. This fan is 14 inches high.](https://cdn.accentuate.io/4612426498186/1659988748735/CX36BD2SPD-product-single-banner.jpg?v=1659988748735)
