PREVENTS MOISTURE
BUILD-UP IN BATHROOMS
MOTION AND HUMIDITY SENSOR
KITS FOR EASY UPGRADES
MOUNTING TABS & WIRING
KNOCKOUTS FOR EASY INSTALL
QUIET
OPERATION

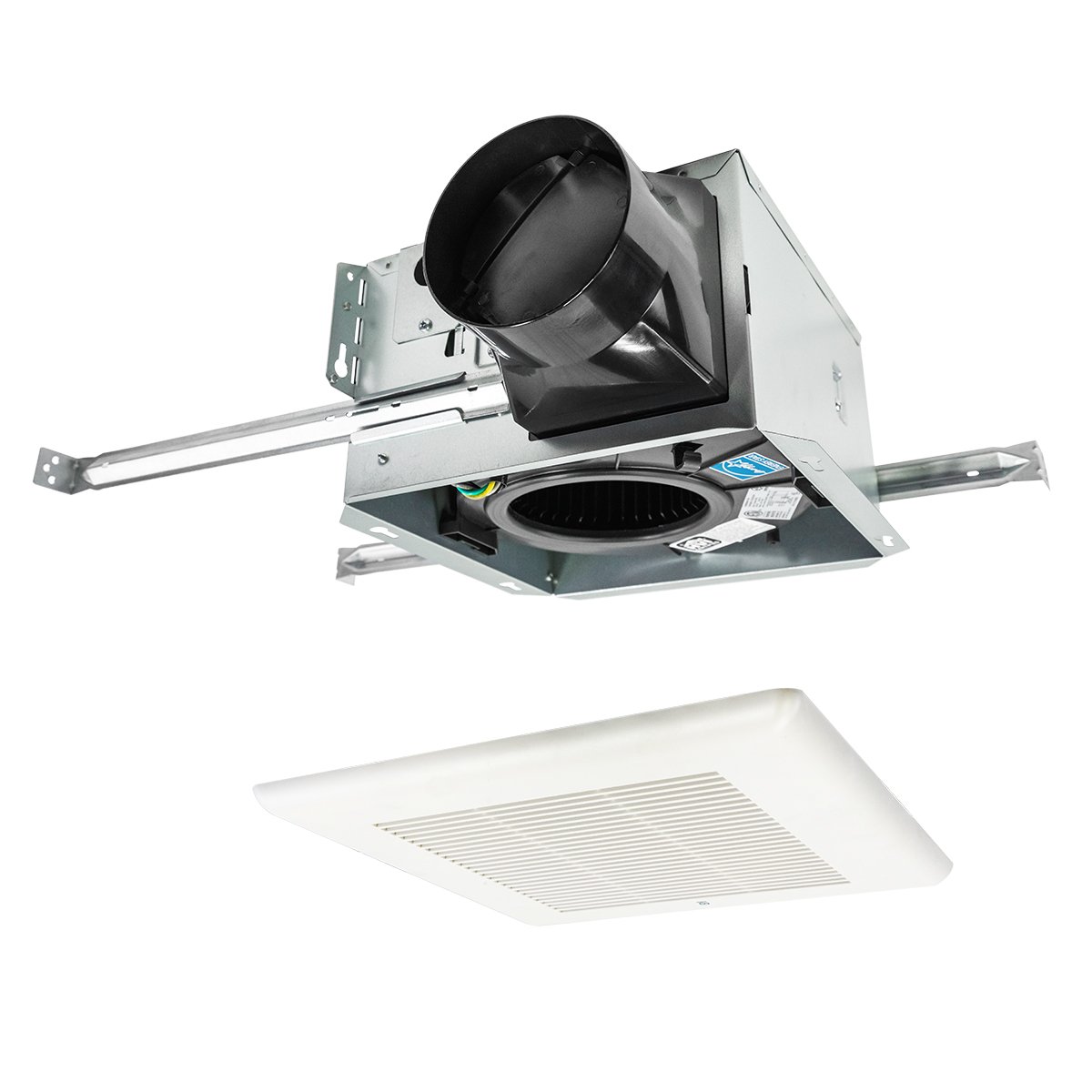

QuFresh BC Series Bath Fans are a cost-effective, yet modern solution for home or commercial use with fans from an 80 - 100 CFM operation for continuous odor ventilation, mildew prevention, and moisture reduction in a bathroom or other room needing a ventilation fan system. Constructed using a galvanized steel housing and 4 in. polymeric duct connector with a spring-installled polymeric grille cover. This exhaust fan includes hanger bars and mounting tabs for installation anywhere between 16 in. to 24 in. on-center joists and a plug-in motor with wiring knockouts on the housing. The PSC motor requires little maintenance and has an unrivaled quiet, low sone operation in this series from 0.8 to less than 0.3 sones. Order with a humidity sensor (BCHUMSR) or motion sensor (BCMOTSR) to customize your vent fan, and a radiation damper (BGCRD) to meet local code requirements.
| Circulation: | Designed for ventilating bathrooms and other rooms from 80 - 100 sq. ft. |
| Installation: | Mounts using mounting tabs or included hanger bars to position anywhere between 16 in. to 24 in. on-center joists |
| Controls: | Permanently lubricated PSC motor designed for continuous operation with balanced centrifugal blower wheel for quiet, efficient performance |
| Material: | Heavy gauge steel housing with 4 in. round extended duct collar |
| Energy Efficiency: | Add humidity and motion sensor kits to your fan for more controlled operation |
| Safety: | ETL Listed for use over a bathtub or shower when connected to a GFCI protected branch circuit (ceiling mount only) |
| Primary Color | White | ||||||||||||||||||
| Secondary Color | Mill | ||||||||||||||||||
| CFM | 80 or 100 | ||||||||||||||||||
| Material Details | Steel Housing, Textured Polymeric Grille | ||||||||||||||||||
| Motor Details | Permanently Lubricated PSC, Plug-In | ||||||||||||||||||
| Motor Specs |
| ||||||||||||||||||
| Dimensions | 5.75 in. H x 11.44 in. W x 11.81 in. D (Grille Size and Housing Depth) | ||||||||||||||||||
| Unit Weight | 6.6 lbs. | ||||||||||||||||||
| Box Dimensions | 7.25 in. H x 14.5 in. W x 12 in. D | ||||||||||||||||||
| Ship Weight | 7.5 lbs. | ||||||||||||||||||
| Alias SKU(s) | BC80: 80 CFM, 4 in. Duct BC100: 100 CFM, 4 in. Duct | ||||||||||||||||||
| Multi UPC Info | BC80: 697453939645 BC100: 697453939652 | ||||||||||||||||||
| Country of Origin - Assembly |
China | ||||||||||||||||||
| Sold Under |
QuFresh |
Our products are shipped via Fedex Ground or LTL Carrier depending on the size and weight of the product. Should you have a special requirement for shipping please contact us at customerservice@usfanco.com or call us to discuss your requirements.
You can use the Freight Estimator in the Shopping Cart to determine what the freight cost will be on your item. Freight will be billed at the time of shipment.
Due to the nature of the products, we cannot ship via Express or overnight service. Typically orders ship within 5 business days. Upon shipment you will be sent a notification of shipment with the Tracking Number. We reserve the right to recall a shipment for any reason.
PERFECT FOR NEW CONSTRUCTION
BC series units can be installed in a 2-phase system—the housing can be mounted with wiring and duct in one phase, and the blower and grille installed in a later second phase once the ceiling is complete. This ventilation fan series has a 5.75 in. housing height which allows for 2 in. x 8 in. joist installations and hanger bars and mounting tabs to position between 16 in. to 24 in. on-center joists.
SILENT OPERATION
Don't put up with the excess noise generated from old, clunky fans. With units operating from less than 0.3 - 0.8 sones, the BC series bath fans are so quiet you might not even know it's on.
CREATE A HEALTHY HOME
A warm shower is great, but all that unventilated steam and moisture can set up your bathroom for mold and mildew (and the damaging after-effects of removing it). Installing a BC Series bath fan aids in removing this moisture in bathrooms ranging from 80 - 100 sq. ft.
