36 In. 2-Speed Belt Drive Whole House Fan with Shutter
36 In. 2-Speed Belt Drive Whole House Fan with Shutter
36 In. 2-Speed Belt Drive Whole House Fan with Shutter
36 In. 2-Speed Belt Drive Whole House Fan with Shutter
36 In. 2-Speed Belt Drive Whole House Fan with Shutter
SOLD OUT

36 In. 2-Speed Belt Drive Whole House Fan with Shutter

  • SKU: CX36BD2SPD
  • Product Type: Residential
  • Barcode: 047242542448
Description

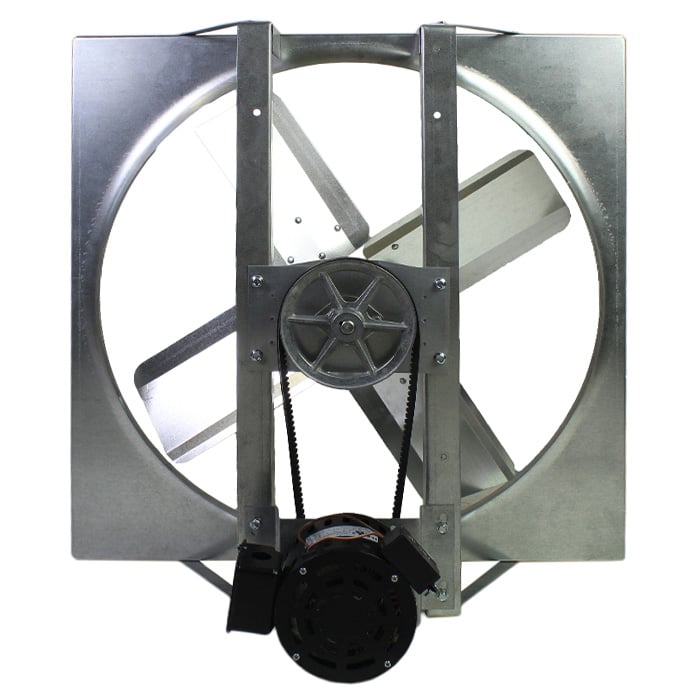

Whole House Fans are ideal for residential use in mild to moderate climates as a supplement to air conditioning. Our belt drive units have been engineered to offer a superior performance with a more stable motor mount that is stronger than typical tube-style bracing and virtually eliminates vibration alongside an automatic shutter in a powder-coated white finish to blend in seamlessly with your ceiling. Install as a joist-in or joist-out configuration. Whole House Fans offer an efficient way to reduce cooling costs by pulling fresh air in from the outside, expelling the warm air up into the attic, and pushing it out through the attic exhaust vents.

Features:

  • Designed for houses with attics over 3,000 sq. ft.

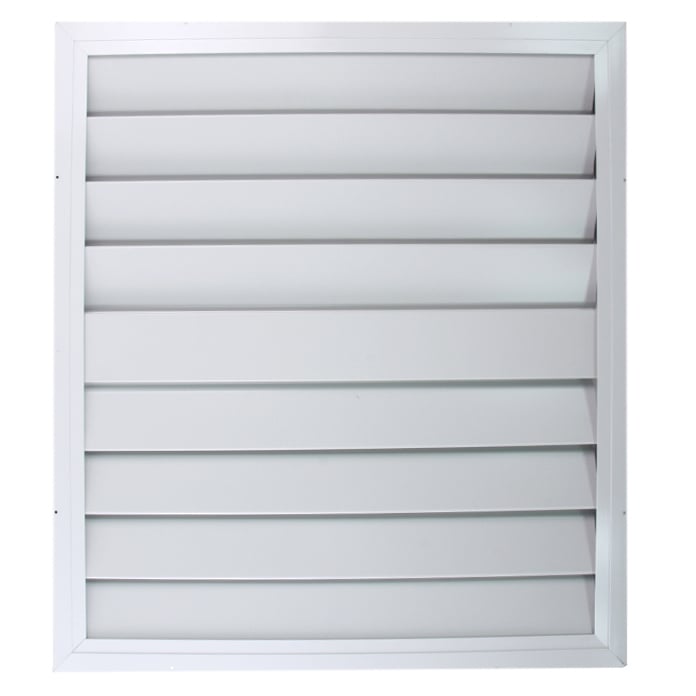

  • Steel construction, aluminum fan blade assembly, and dual ball bearing technology with automatic shutter
  • Joist-in or joist-out installation. For ceiling install only - not for wall exhaust use.
  • 2-speed operation with included dual high/low and on/off wall switch
  • Requires 12 to 14 sq. ft. (1,728 to 2,016 sq. in.) of NFA
  • C, UL, US Listed
  • 10-year limited warranty
  • Assembled in the USA

Video:


Instructions Click Here for Quick Start Guide

Click Here for Instructions
Spec Sheet Click Here for Shutter Detail
Primary Color Mill
Secondary Color White
Material Details Steel Venturi / Aluminum Fan Blades
NFA Requires 12 to 14 sq. ft. (1,728 to 2,016 sq. in.)
CFM 6,800 LOW / 9,700 HIGH
Motor Details 2-Speed Thermally Protected PSC Motor
Motor Specs 5.3 Amps / 60 Hz / 370 Watts / 120 Volts
Dimensions 42.25 in. x 42.25 in. ; Rough Opening: 37.5 in. W x 34 in. L
Unit Weight 57 lbs.
